AVANT Lithium powered electric pallet jack - Compact - Tight turning.
AVANT
Lithium

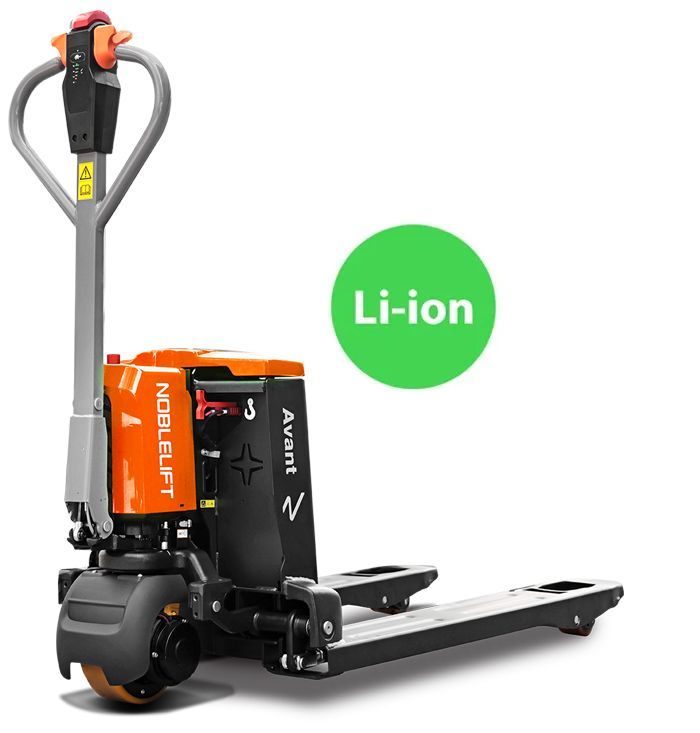

- PJE33-PJE44 Electric Pallet Jack
The AVANT PJE33-PJE44 3,300lb-4,400lb capacity Lithium Pallet Jacks are economical, quiet, very low maintenance, ultra-smooth, and are perfect for light and medium duty material handling.
Their extremely compact design, low service weight and small turning radius make them ideal for loading docks, delivery operations, logistic centers, narrow aisles, and applications within confined spaces like supermarkets, retail stores, elevators, trailers, containers, and mezzanines warehouses.
FEATURES

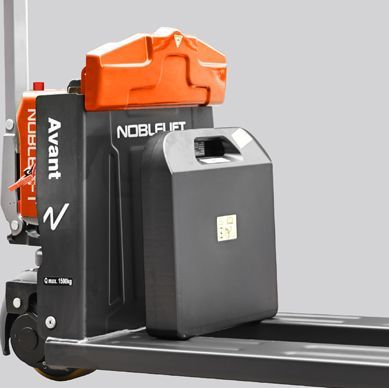

Smart Lithium Battery
Equipped with a fast-charging maintenance-free Lithium Iron Phosphate battery, the longest lasting and safest lithium battery available. Our lithium batteries are equipped with a Battery Management System (BMS), thermal management system, and an automotive-grade DC high-voltage control system. BMS manages charging and discharging data to ensure safety throughout its life cycle.
Smart design allows for a one-handed easy battery exchange within seconds.

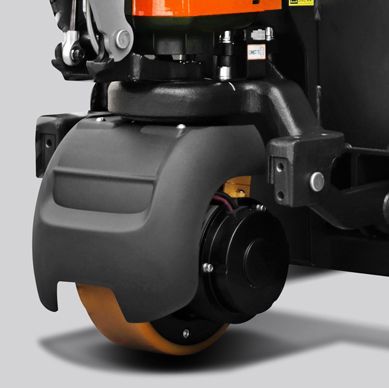

Traction Wheel
A large-diameter, wear-resistant and shock-absorbing polyurethane traction wheel and a 24V DC permanent magnet motor ensures superior performance.
Robust and Reliable Design
Enclosed design and one-piece steel battery cover provides protection to the main components and delivers higher waterproof and dustproof ratings.
Stamped steel drive wheel cover adds additional protection to components and the operator’s feet during work.
High-strength compact frame ensures long, reliable material handling for multiple shifts.
A unique fork design allows for easy entrance and exit from pallets. An integrated stamping process increases the strength and rigidity of the frame.
Excellent Climbing Performance
Ability to overcome ramps up to 7/20% incline (laden/unladen).

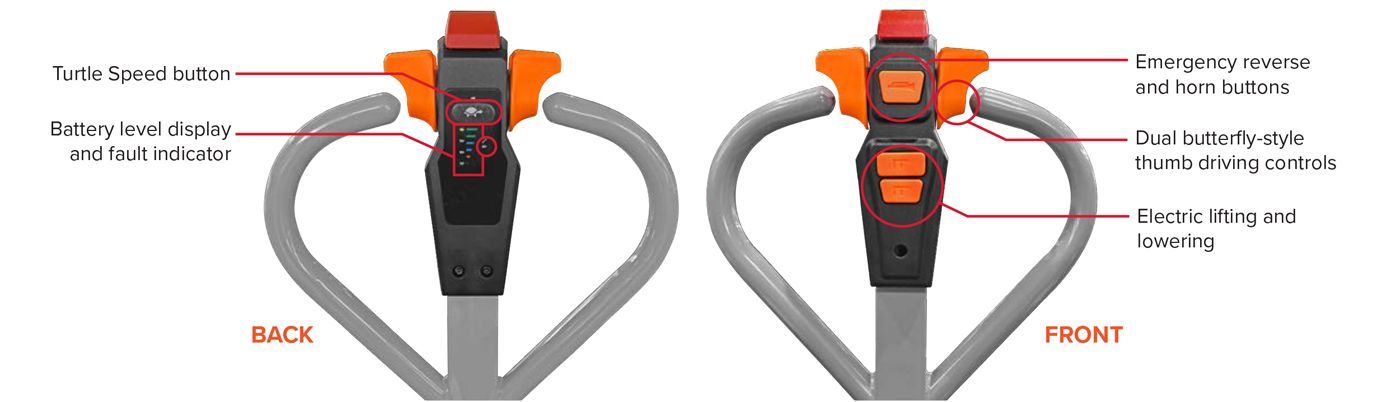

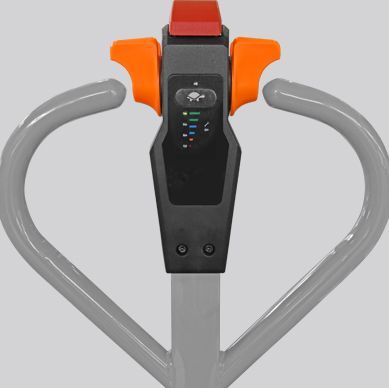

Ergonomic Smart Tiller
Tiller head is designed for comfortable and ergonomic operation. The buttons are extra large and can be easily used by operators, even while wearing gloves.

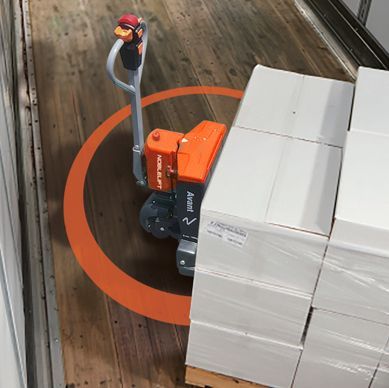

Turtle Speed Button - Pinwheel Capability
By holding the Turtle button down, the truck will operate with the handle in the upright position, providing safe and easy operation within confined spaces such as steering within a trailer, a container or other small areas.
Dual Butterfly-Style Thumb Controls
allow for effortless traveling.
Emergency reverse, horn and electric lifting and lowering buttons.
CAN-bus Technology
CAN-bus technology makes analysis and adjustments easier, reducing downtime.

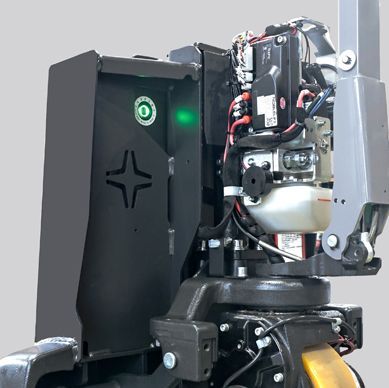

Easy-Maintenance
Convenient and fast access to any component of the truck. No Special tools are required.
Integrated hydraulic and electrical systems ensure easy maintenance.
External programming port makes parameter adjustments and maintenance efficient.
SPECIFICATIONS
MODEL PJE33 PJE44
Unit Type Lithium Electric Pallet Truck
Load Capacity 3,300lb 4,400lb
Load Center 24"
Power 24V/20 Ah 48V/20 Ah
Battery Charger 24V/10A 48V/5A
Fork Dimensions 45" Standard
Max Fork Height 4.53"
Collapsed Height 2.95"
Turning Radius 52.45"
Travel Speed (Laden/Unladen) 2.5/2.7
OPTIONS
Additional Lithium battery pack - Double the operating time
