PTE33N - EDGE 33 - LITHIUM
Lithium-ion powered electric pallet truck - Medium duty - Tight turning.
PTE33N The Edge 33Lithium - Electric Pallet Truck
The PTE33N (The Edge 33) 3,300lb capacity, lithium electric pallet truck eliminates operator fatigue, struggling, backaches and injuries. Greatly increase your work productivity with this economical, quiet, very low maintenance, ultra-smooth, fully electric pallet jack. It is the ideal choice for delivery and retail operations.
Ergonomic and robust, this electric pallet truck has a maintenance-free lithium battery with one-hand removal and a tight turning radius. Perfect for applications within confined spaces like elevators, trailers, containers, and mezzanines warehouses.
FEATURES
Smart Lithium Battery
Equipped with a maintenance-free Lithium battery with optional different capacities for various applications, the EDGE offers fast charging and opportunity charging, allowing you to charge between operations and during breaks.
The integrated BMS (Battery Management System) controls all important parameters and performance of the lithium battery.
The smart design allows easy exchange of the 24 volt battery pack within seconds.

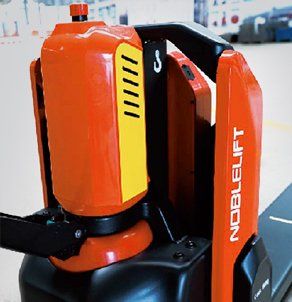

Easy-Maintenance
Convenient and fast access to any component of the truck. No Special tools are required. There are no hoses or pipes used in the hydraulic lifting circuit which significantly improves reliability and reduces the amount of potential problems related to leakages through connectors or their seals.
Robust and Reliable Design
The frame of the truck is surrounded by stamped steel and a strong steel apron ensuring the protection of components. The unique fork design allows for easy entrance and exit from pallets and their full length double sided C-shape reinforcement significantly increases the strength and rigidity of the frame.
Excellent Climbing Performance
Ability to overcome ramps up to 4%/16% incline (laden/unladen).

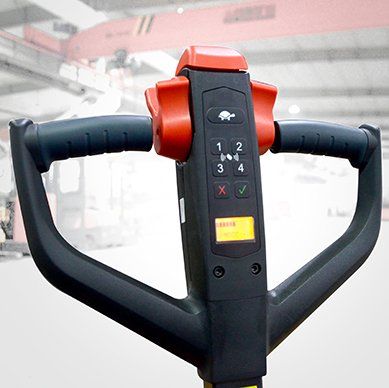

Ergonomic Smart Tiller
Ergonomic design has soft grips for comfortable daily operation. All buttons are big and can be easily reached by operators even while wearing gloves.
Integrated PIN code panel with LCD display for smart control
and operation. Includes Battery discharge indicator, operating hour counter, and on-board diagnostics via error codes.
Turtle Speed Button - Pinwheel Capability
By holding the Turtle button down, the truck will operate with the handle in the upright position, providing safe and easy operation within confined spaces such as steering within a trailer, a container or other small areas.
Dual Butterfly-Style Thumb Controls for traveling.
Emergency reverse, horn and electric lifting and lowering buttons.
Curtis Controller and CAN-bus Technology
CAN-bus technology makes analysis and adjustments easier, reducing downtime.
SPECIFICATIONS
Unit Type Lithium Electric Pallet Truck
Load Capacity 3,300lb
Load Center 24"
Power 24 volt / 20 Ah
Maintenance-Free Lithium Battery
Battery Charger 24V/8A Charger 110V
Fork Dimensions 27" W x 45.3" L Standard
Max Fork Height 7.6"
Collapsed Height 3.1"
Turning Radius 50" / 52.3"
Vehicle Dimensions Download Brochure
Travel Speed Download Brochure
OPTIONS
Optional Fork configurations
48" LBR
Additional Lithium battery pack - Double the operating time
Additional battery charger
Optional 36Ah Lithium battery/charger
