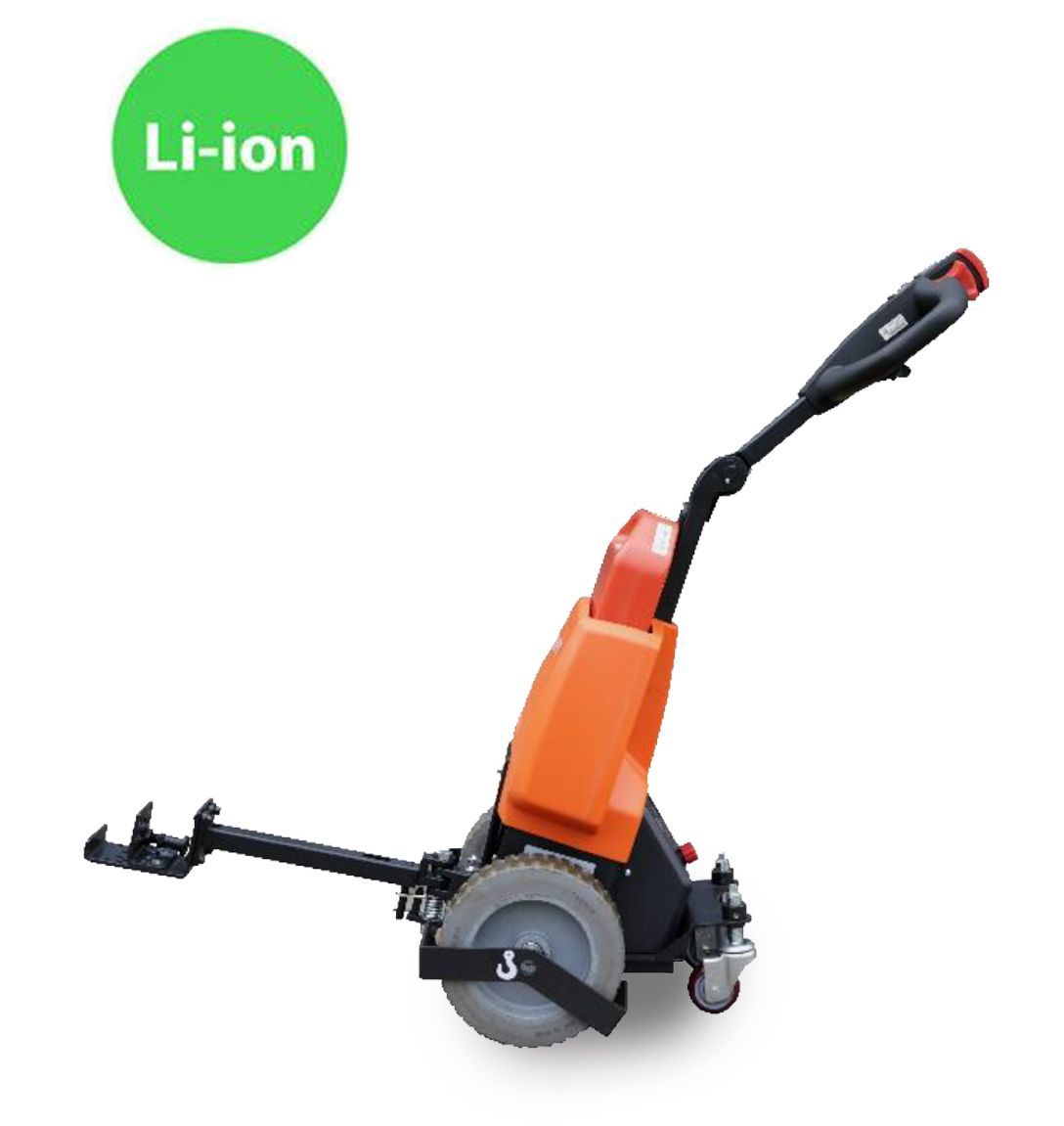

TE22 Li Lithium Walkie Tugger - Tow Tractor
The TE22 Li Lithium Walkie Tugger Tow Tractor is a compact, entry-level electric tractor designed for light-duty applications with a towing capacity of 2,200 lbs. Its ultra-compact design allows it to maneuver easily through tight and complex environments such as supermarkets, factories, hospitals, and airports. The plug-and-play lithium-ion battery can be swapped in seconds to keep operations moving, and at only 17.6 lbs, it’s light enough for anyone to replace quickly and easily.
The TE22 Li is designed for ease of use. Its innovative adjustable handle and low-speed mode allow operators to easily set the handle height and travel speed to match the application. An ergonomically designed handle ensures comfortable, effortless operation.
FEATURES
- Towing capacity 2,200lbs
- American Curtis Controller with CAN-bus Control

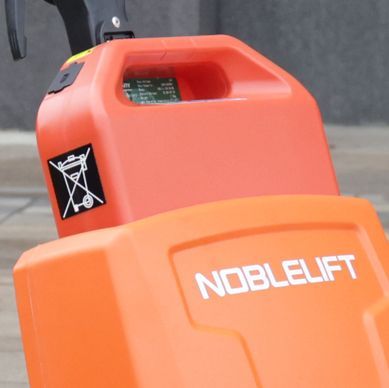

- Lithium battery pack 24V36Ah with BMS (Battery management system)
- Lithium charger 24V/12A

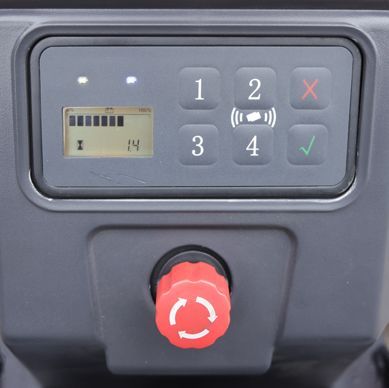

- Multi-functional instrument with PIN code access displaying battery status/travel speed/fault code etc.
- Emergency reverse function
- Horn button
- Ergonomically designed handle with great comfort for operation
- Adjustable tiller with desired height
- Wheel guard provides exceptional feet protection

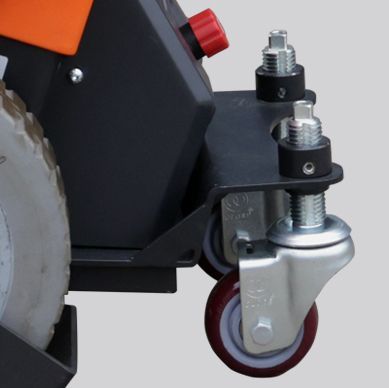

- Swivel casters with adjustable height
- Standard coupling arm fixed to the tractor, allowing for different coupling heights

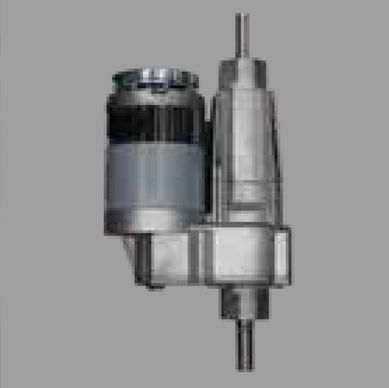

- Drive axle with differential mechanism provides smooth and effortless steering while driving

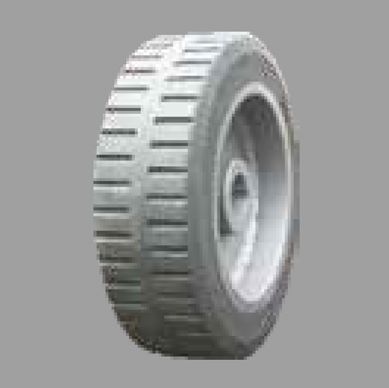

- Soft rubber non-marking wheels ensures high traction
- Small turning radius Wa-560mm (22’’)
- Travel speed: 3mph (unloaded), 2.8mph (loaded)

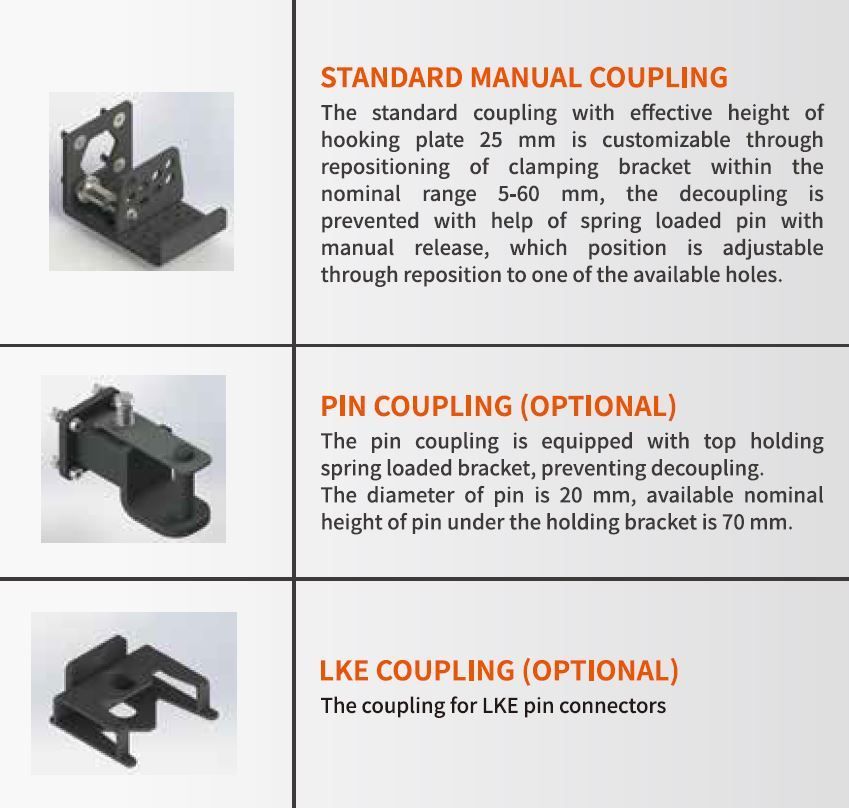

COUPLINGS
Standard manual coupling, optional PIN type and LKE coupling.
